Top End Overhaul Engine Kit (4558-B29)

Discounts Apply !
Free shipping on orders of $1,000 or more! Some restrictions apply.
Part # 4558-B61555
Price: $306.79
Quantity
+
-
For E-Z-GO 3 PG 2-cycle gas 1989-1993

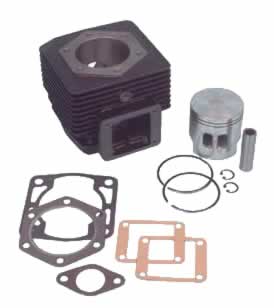

  • Includes cylinder, 2-port piston & rings, wrist pin, snap rings and gaskets
  • Limited availability, Please contact before purchase

    OEM # 24619-G1 The E-Z-GO factory standard piston measures 2.832" (71.95mm). This measurement should be taken just above the bottom of the piston skirt at a right angle to the piston pin. The first oversize (.010) piston measures 2.842" (72.19mm) OD. The second oversize (.020") piston measures 2.852" (72.44mm) OD. There are no larger oversize pistons available for this engine. The piston to cylinder wall clearance for a rebore is .003" (.07mm). Maximum wear for piston to cylinder wall is .006" (.15mm). Piston ring end gap is .016" (0.40mm). Torque the cylinder base nuts to 24 to 28 ft-lbs and the head bolts to 17 to 18 ft-lbs in two separate steps.

    4 Product Reviews - Average rating 5 / 5 (Show All)

    Click to review this product

    A+

    - 08/23/2016

    Quality kit has everything needed to rebuild top end. This is 2nd one ive installed very hapoy with the product

    1990 Ezgo top end rebuild kit

    - 05/15/2014

    Great price and fast shipping. Very impressed with quality and performance.

    The right parts

    - 07/17/2013

    Everything went together great. Cart runs good. Make sure you put the rings in the piston grooves with taper side up, and indexed right. There is a locating pin in both ring grooves. A 4 inch hose clamp makes a good ring compressor. Clamp lightly so the piston can slide out of the clamp into the cylinder.

    Perfect Fit

    - 07/03/2013

    Everything went together great. Had it running in less than 1 hour. Make sure you install the rings tapper side up, and indexed in the right place. A 3 to 4 inch hose clamp makes a great piston ring compressor.
