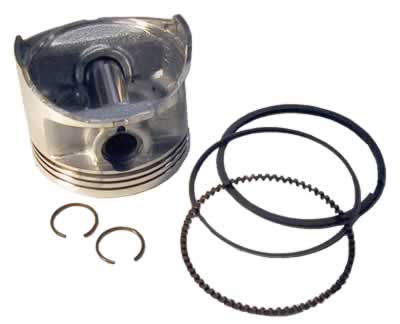

Piston & Ring Assembly - .50mm (5154-B29)

For Club Car DS gas FE350 engine 1996-up.

Includes piston, rings, wrist pin and clips

Standard Bore on A FE350 is 3.267 US Measure .01 Over = .25mm & .02 Over = .50mm Over

1995 & Newer Club Car FE350 Engine Standard Bore: 3.2703 in. (83.067mm) Piston to Cylinder Clearance: .010 in. Bore Taper (top to bottom): .006 in. Bore Out of Round: .0022 in. max Ring end Gap (top & second): .047 in. max Piston Pin to Piston Clearance: .0023 in. max Connecting Rod Big End Side Play: .013 in. max Standard Crank Pin: 1.4742 in. (37.444mm) Crank Pin Wear: .002 in. FE350 Tune-up Specs Valve Clearance: No Valve Adjustment Neccessary Plug Gap: .028"-.031" Ignition Coil Air Gap Standard.: .3mm (.012") Air Gap Adjustment Range: .25mm-.4mm (.010"-.016") FE350 Tune-up Specs Cylinder Head Bolts: 18 ft lbs Connecting Rod Bolts: 17 ft. lbs. Flywheel Nut: 101 ft lbs Spark Plug: 17 ft lbs Crankcase Bolts: 23 ft lbs Fan Retaining Plate: 7.2 ft lbs Fan Housing: 7.2 ft lbs
